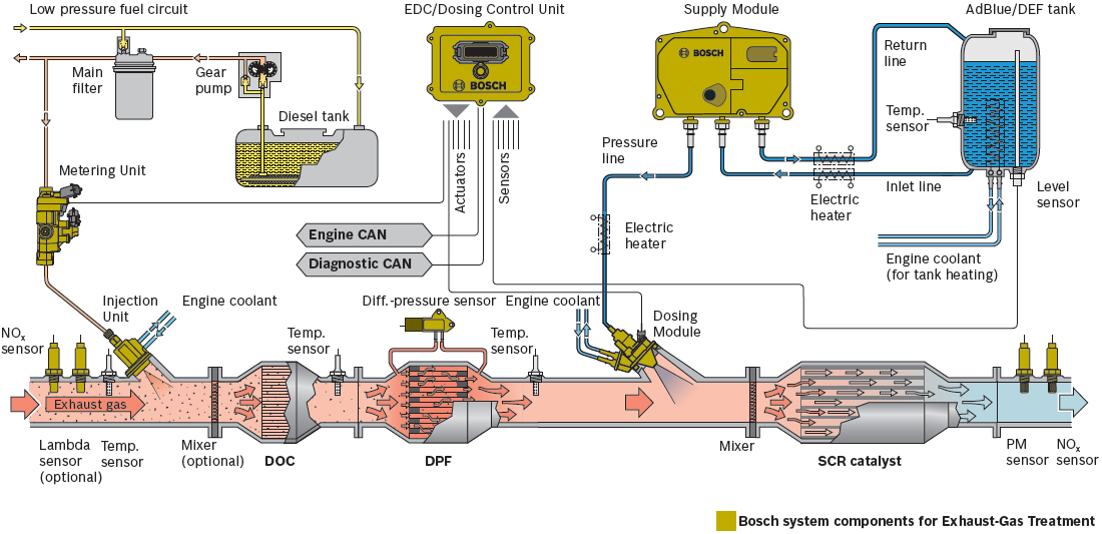

SCR system Integration
Lambda Sensor (optional) fit for air-mass controller adaption.
Temp sensor T4: upstream of DOC for DPF RGN control.
Temp sensor T5: upstream of DPF for DPF RNG control
Temp sensor T6: upstream of SCR catalyst for dosing control
Nox sensor(Pre): upstream of DOC for SCR dosing control
Nox sensor(down): downstream of SCR for SCR catalyst efficiency monitor and dosing close-loop control.
PM sensor : Monintor of DPF filter efficiency.
Dosing Module: actuator for Urea dosing.
Supply module: supply the Urea.
Adblue/DEF tank: storage of Urea.
Injection unit: Post inject for RGN (this is optional).
Metering unit: control the inject quantity for injection unit.

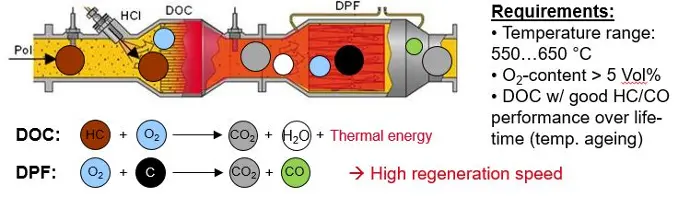

Passive DPF-Regeneration

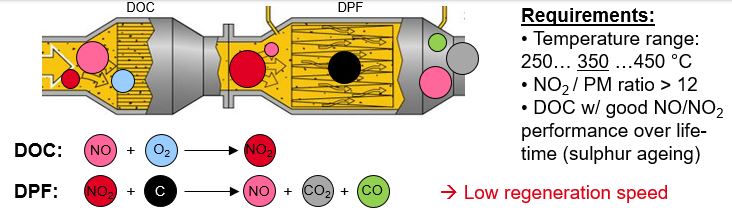

NO2 Regeneration
Use Case: Long Haulage Most Long Haulage applications are feasible with CRT
